Tools for turbo manifold fabrication.
Small, focused calculators and printable aids for people who build their own manifolds.
-

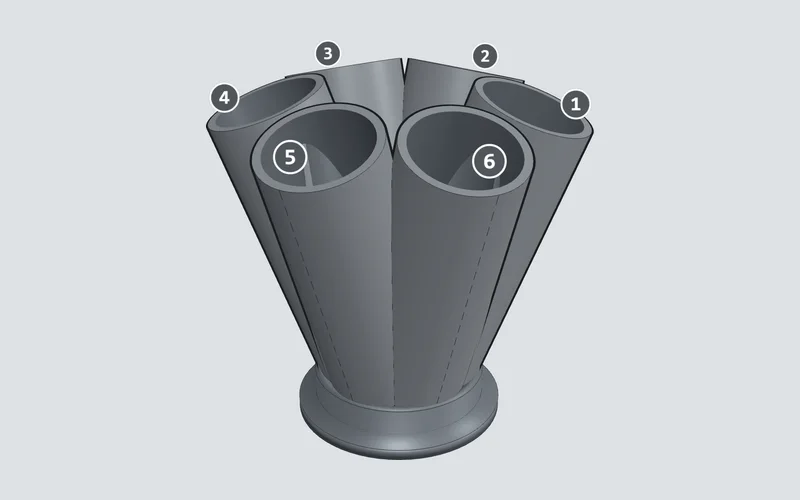

Free · liveMerge Collector Calculator
Pick the runners, pipe size, merge angle and turbine flange, see the collector in 3D and print full-size wrap templates for the cuts.
-
Coming soonManifold Builder
Routes the runners from your head flange to a merge collector and turbo, with a cut list and a build guide.
-
Coming soonElbow Marking Jig
A 3D-printed jig for marking butt-weld elbows to cut them at any angle, one per pipe size and radius.
Being test-printed.
More tools coming
Have an idea for a tool that would help on your next build? Feedback is welcome.

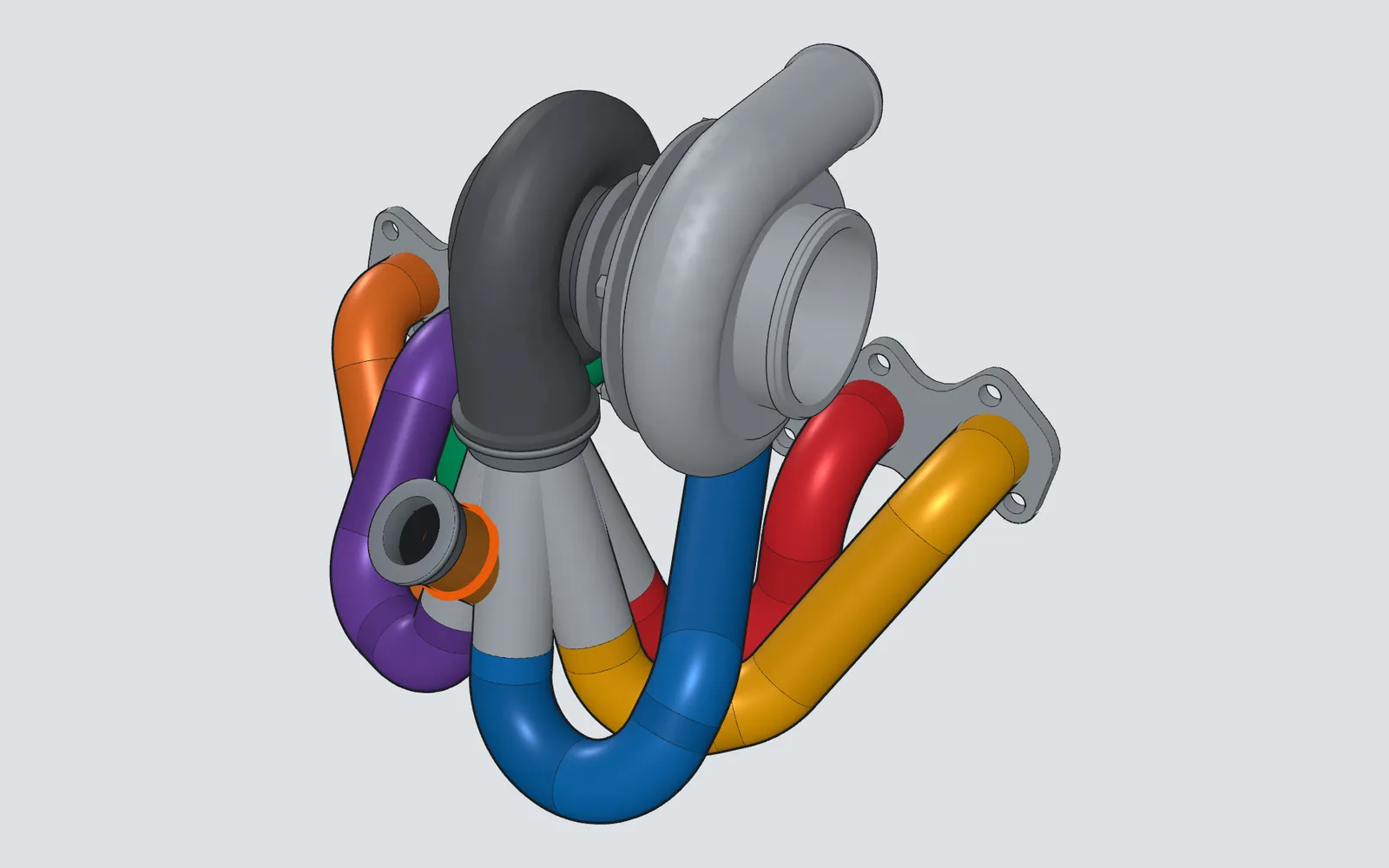

Manifold Builder
Define your head flange, turbo flange, and any no-go zones, and the generator designs a complete turbo manifold around them. Each runner is routed from head to collector, kept clear of surrounding components, and validated for weldability. Every design comes with a parts list, a step-by-step build guide, and files for a full-scale 3D-printed mock-up.

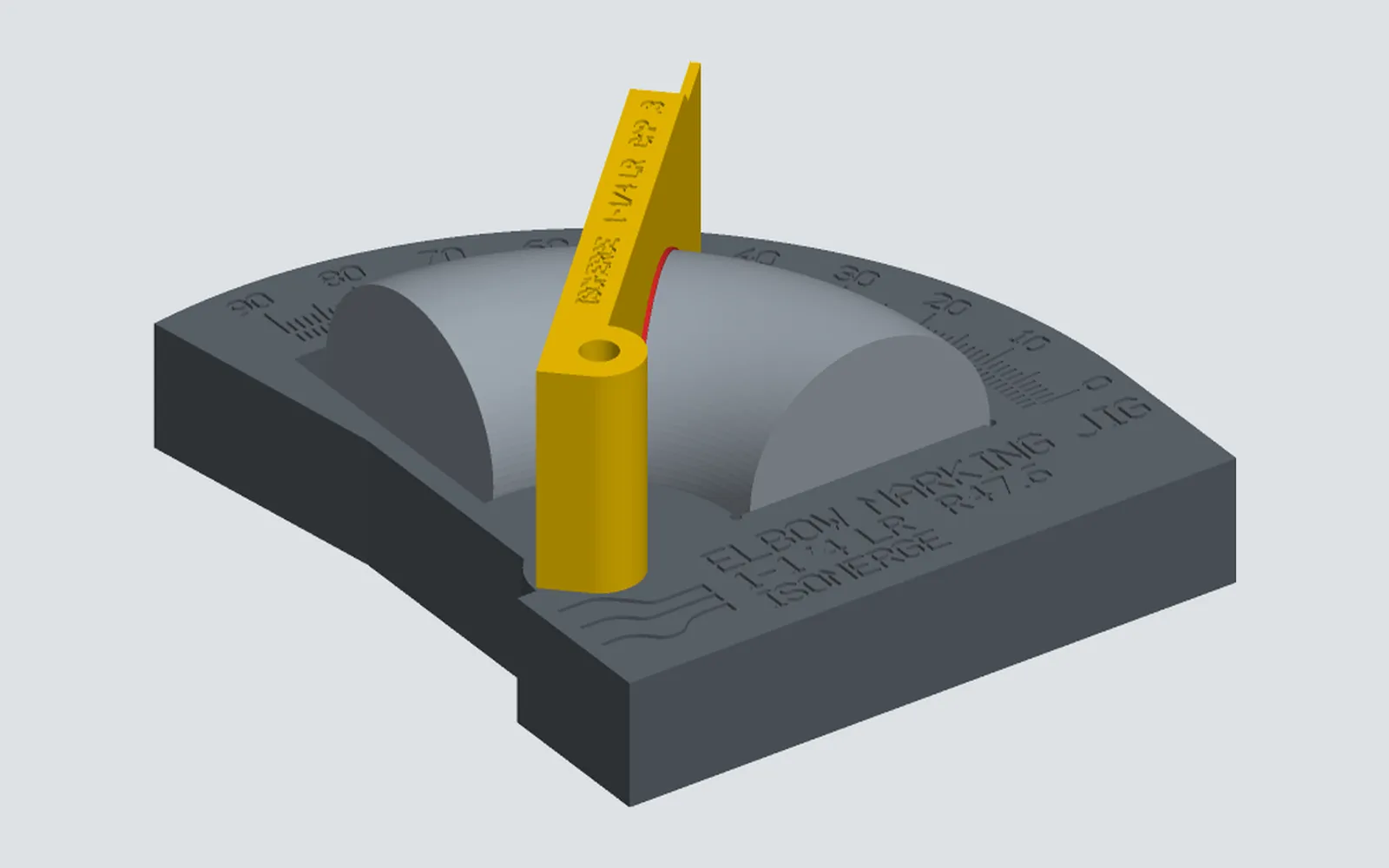

Elbow Marking Jig
Set the angle on the degree scale, trace along the fence, and the jig gives you a clean, accurate cut line all the way around a butt-weld elbow. One 3D-printed jig per pipe size and bend radius, with free STL and 3MF files for your own printer.
